Carbon/graphite material molding essentially involves increasing the density of the powder mixture and ensuring close contact between the aggregate and binder to produce a green body with a desired size, morphology, and minimal machining allowance. The four main molding methods are extrusion, compression molding, vibration molding, and isostatic pressing. Common carbon/graphite materials on the market (for example, charcoal used for household fires) are mostly formed using hot extrusion and compression molding (cold or hot). Isostatic pressing offers superior molding performance.
The principle of isostatic pressing is based on Pascal's law: pressure applied to a medium (liquid or gas) in a sealed container is uniformly distributed in all directions, with the pressure on the surface being proportional to the surface area. Isostatic pressing involves placing a sample, enclosed in a sealed container, within a high-pressure cylinder. Leveraging the incompressible nature of the liquid medium and its ability to uniformly transmit pressure, the sample is uniformly pressed from all directions. When the fluid is injected into the cylinder, the pressure is evenly transmitted in all directions according to the principles of fluid mechanics. The sample in the cylinder is then subjected to uniform pressure in all directions.

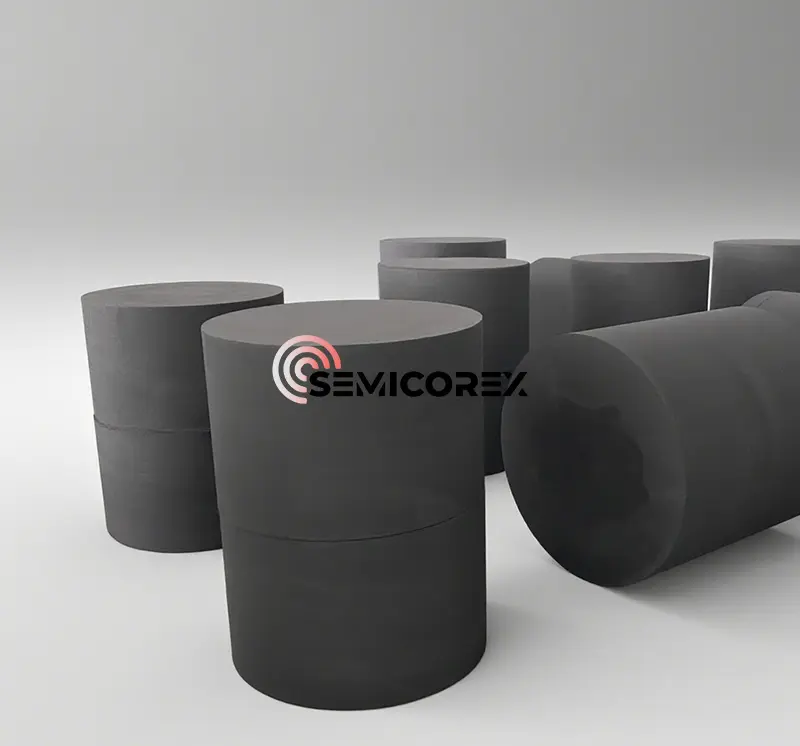

Due to the isostatic pressing method, isostatically pressed graphite exhibits excellent isotropy, with properties independent of shape, size, or sampling direction. The material possesses a dense microstructure, high mechanical strength, high surface hardness, and oxidation resistance. Strong performance and high-temperature resistance; the material has excellent thermal shock resistance and is less susceptible to cracking under rapid cooling and heating conditions.
1. Isotropy
Different molding methods result in different properties in different directions. This is primarily reflected in resistivity, thermal conductivity, mechanical properties, and thermal expansion coefficient. The general measurement method is to sample the product perpendicular to and horizontally from the pressure surface, measure the properties separately, and then divide the smallest value by the largest value to obtain the isotropy ratio.
Traditional carbon/graphite products exhibit significant anisotropy, i.e., the properties of the product are different in the directions perpendicular to and horizontal to the pressure surface. The corresponding difference in performance is generally greater than 1:1.1, hence the term anisotropy. In many cases, this difference is fully exploited, and the greater the difference, the better. Examples include graphite electrodes for steelmaking and brushes for motors. Many applications, such as EDM and single-crystal silicon thermal field applications, increasingly require carbon/graphite products to exhibit isotropy (with an orientation ratio within the 1:1.05 range).
2. Large Dimensions
The market is increasingly demanding larger product sizes. For example, single-crystal silicon products have grown from 6- and 8-inch sizes to 12-inch sizes. The size of graphite materials used in thermal fields is also increasing. This is also increasing. Similar trends are seen in other related industries. Graphite for EDM, continuous casting, and nuclear reactors also requires large-scale products. This is difficult to achieve using molding and extrusion methods. The primary problem with large-scale product production is calcination cracking, and the larger the product, the higher the chance of calcination cracking.
3. Fine Structure
As a structural material, it requires high physical and chemical properties. On the one hand, the finer the particle size of the carbon particles that make up the carbon/graphite material, the denser its texture and the higher its mechanical strength.
Isostatically pressed graphite is widely used in semiconductor manufacturing processes. It is used in graphite components for the hot zone of single crystal growth furnaces, such as crucibles, heaters, flow guides, and insulation covers; and in graphite components used in epitaxial processes.
Semicorex-Graphitpulver (Reinheit 99,999 %, Partikelgröße 1–5 µm) ist ein Hochleistungsmaterial, das für das Wachstum von Halbleiterkristallen unerlässlich ist und überragende Reinheit und Stabilität bietet. Semicorex gewährleistet höchste Qualitätsstandards und bietet maßgeschneiderte Lösungen für die fortschrittliche Fertigung.*
WeiterlesenAnfrage absendenSemicorex Graphite Thermal Field kombiniert modernste Materialwissenschaft mit einem tiefen Verständnis von Kristallwachstumsprozessen und liefert eine innovative Lösung, die es der Halbleiterindustrie ermöglicht, neue Leistungs-, Effizienz- und Kosteneffizienzniveaus zu erreichen.**
WeiterlesenAnfrage absendenSemicorex-Graphit-Einzel-Silizium-Ziehwerkzeuge erweisen sich als unbesungene Helden im feurigen Tiegel von Kristallwachstumsöfen, wo die Temperaturen in die Höhe schnellen und Präzision an erster Stelle steht. Ihre bemerkenswerten Eigenschaften, die durch innovative Herstellung verfeinert wurden, machen sie unverzichtbar für die Entstehung von makellosem einkristallinem Silizium.**
WeiterlesenAnfrage absendenSemicorex hat sich der Herstellung und Lieferung von Tiegeln für monokristallines Silizium verschrieben, die sich durch außergewöhnliche Reinheit, hervorragende thermische Eigenschaften, mechanische Festigkeit und Kompatibilität mit etablierten Wachstumsmethoden auszeichnen und sie für die Erfüllung der strengen Anforderungen der Elektronik- und Solarindustrie unverzichtbar machen.**
WeiterlesenAnfrage absendenSemicorex-Graphitheizer für die Heißzone wurden für den zuverlässigen Betrieb in Hochtemperaturöfen entwickelt und sind so konstruiert, dass sie den anspruchsvollen Bedingungen standhalten, die bei Prozessen wie chemischer Gasphasenabscheidung (CVD), Epitaxie und Hochtemperaturglühen auftreten. Wir bei Semicorex widmen uns der Herstellung und Lieferung leistungsstarker Graphitheizgeräte für Heißzonen, die Qualität mit Kosteneffizienz verbinden.**

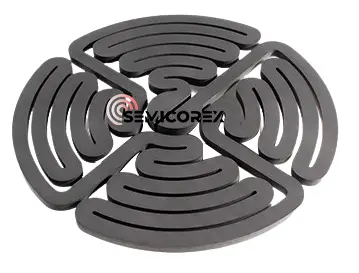

WeiterlesenAnfrage absendenSemicorex-Graphitheizelemente sind zu unverzichtbaren Komponenten in der Halbleiterfertigung geworden und ermöglichen die präzisen und kontrollierten thermischen Umgebungen, die für die fortschrittliche Waferverarbeitung erforderlich sind. Ihre einzigartige Kombination aus Materialeigenschaften, Designflexibilität und Leistungsvorteilen macht sie ideal für die Erfüllung der strengen Anforderungen der Halbleiterbauelementfertigung der nächsten Generation. Wir bei Semicorex widmen uns der Herstellung und Lieferung leistungsstarker Graphitheizelemente, die Qualität mit Kosteneffizienz verbinden.**
